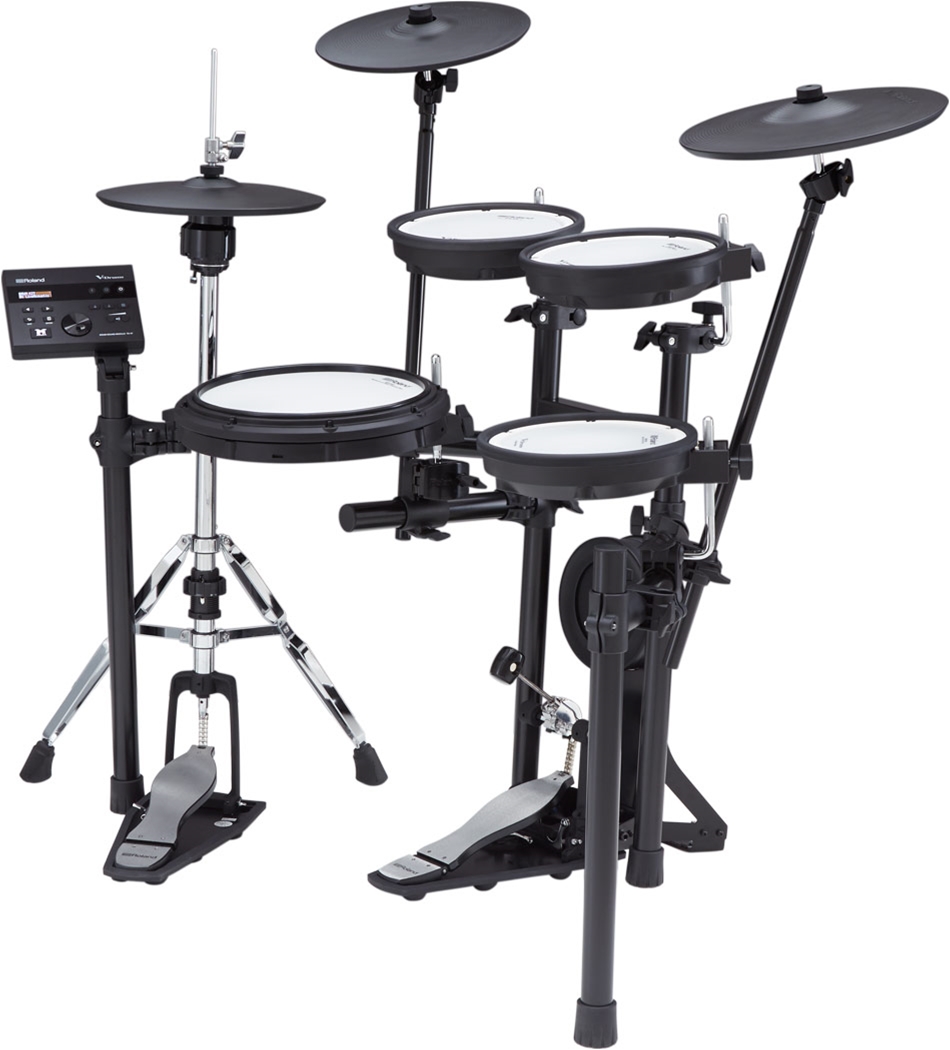

The Ultimate Model in the TD-07 Series, with VH-10 Floating Hi-Hat and Best-Ever Cymbals
The TD-07KVX is the pinnacle of Roland’s TD-07 V-Drums series, offering the ultimate complement of pads and cymbals to satisfy the most demanding drummers. This top-tier kit has the largest cymbal pads in the lineup, with a separately mounted VH-10 floating hi-hat, an uprated CY-12C crash, and a large 13-inch CY-13R ride that let you reach your true potential. You also get the PDX-12 snare and three PDX-8 toms, backed with the unrivaled feel of our original ultra-quiet, double-ply mesh heads. And, as with all TD-07 kits, the powerful TD-07 module lets the TD-07KVX eclipse traditional drums, with deep editing tools for crafting custom kits, Bluetooth® for audio playback from your phone, tablet, or computer, and one-cable USB connectivity to music recording software.
SPECIFICATIONSKit configuration (*1)Kick: KD-10
Snare: PDX-12
Hi-hat: VH-10
Tom: PDX-8 x 3 *2
Crash: CY-12C-BK
Ride: CY-13R-BK
Drum stand: MDS-4KVX or MDS-COMPACT x 1 (recommended, sold separately)Drum kits50 (Preset: over 20)Instruments143Effect TypesPad Equalizer: each pad
Overhead Mic Simulator
Room
Multi-Effects: 1 system, 30 typesCoach functions (5 modes)Time check (easy)
Time check (hard)
Quiet count
Auto up/down
Change-upMetronomeTempo (20--260)
Rhythm type (5 types)
Sounds (15 types)BluetoothSupported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)

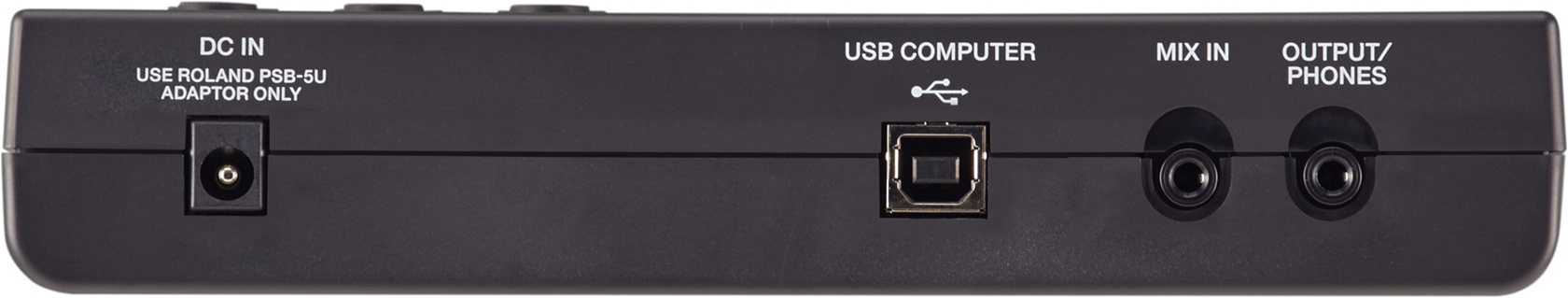

Codec: SBC (Support to the content protection of the SCMS-T method)Display16 characters x 2 lines LCD (with backlight)ConnectorsOUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)USB COMPUTERSpeed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *3USB AudioSampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 channels
Playback: 2 channelsPower supplyAC adaptor (DC 12 V)Current draw250 mAAccessoriesSetup Guide
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Special connection cableOptions (sold separately)Personal drum monitor: PM series
V-Drums accessory package: DAP-3X
V-Drums mat: TDM series
Noise eater: NE seriesSIZE & WEIGHTDimensions1,300 (W) x 1,100 (D) x 1,200 (H) mm
51-3/16 (W) x 43-5/16 (D) x 47-1/4 (H) inches
(including sound module, kick pad, kick pedal and drum throne)Weight20.9 kg / 46 lbs 2 oz
