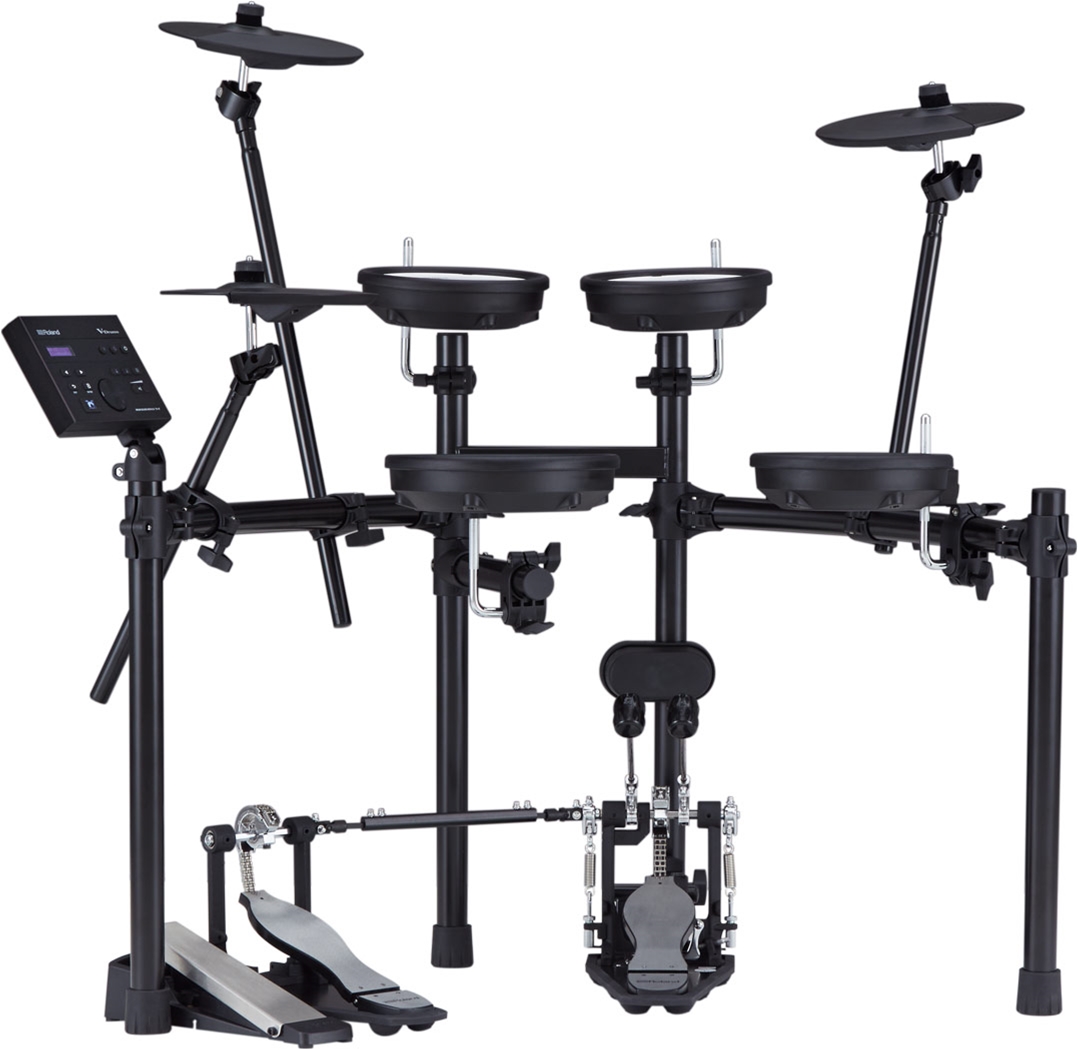

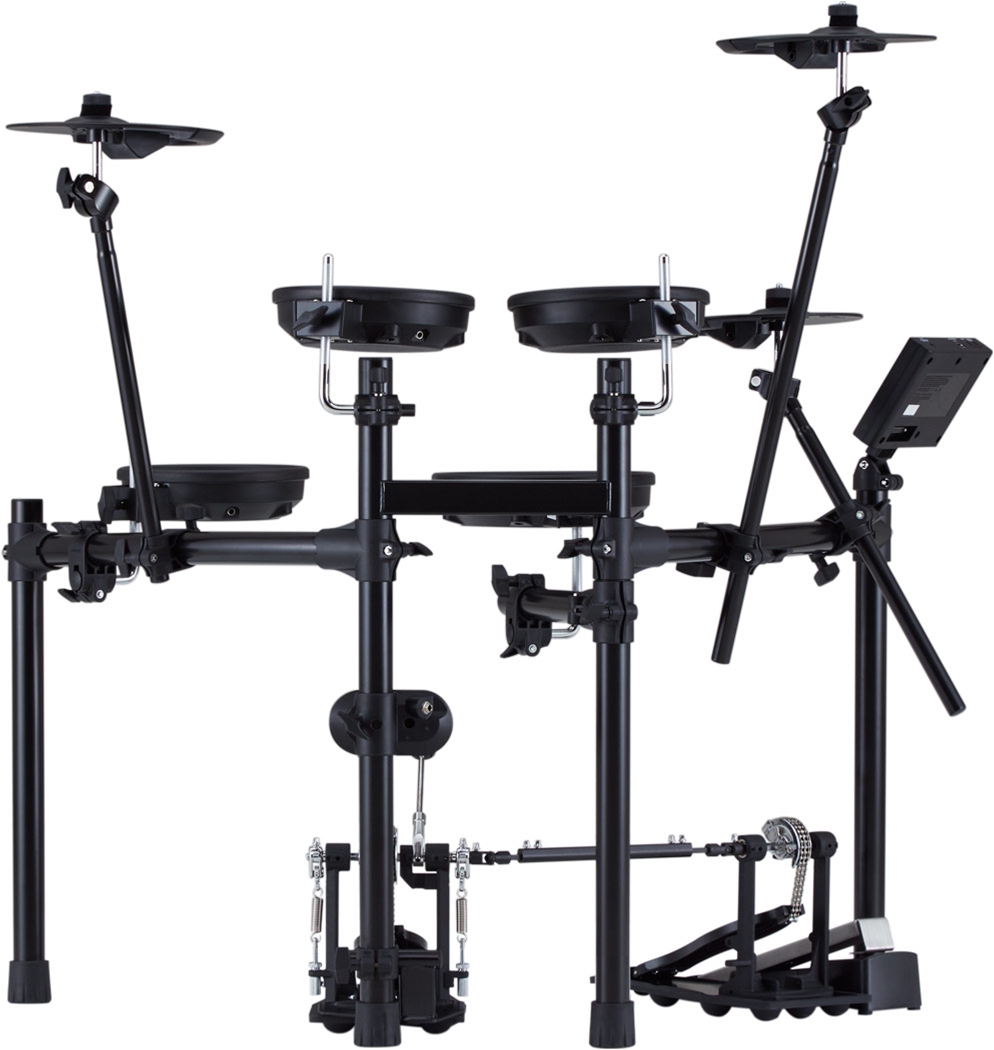

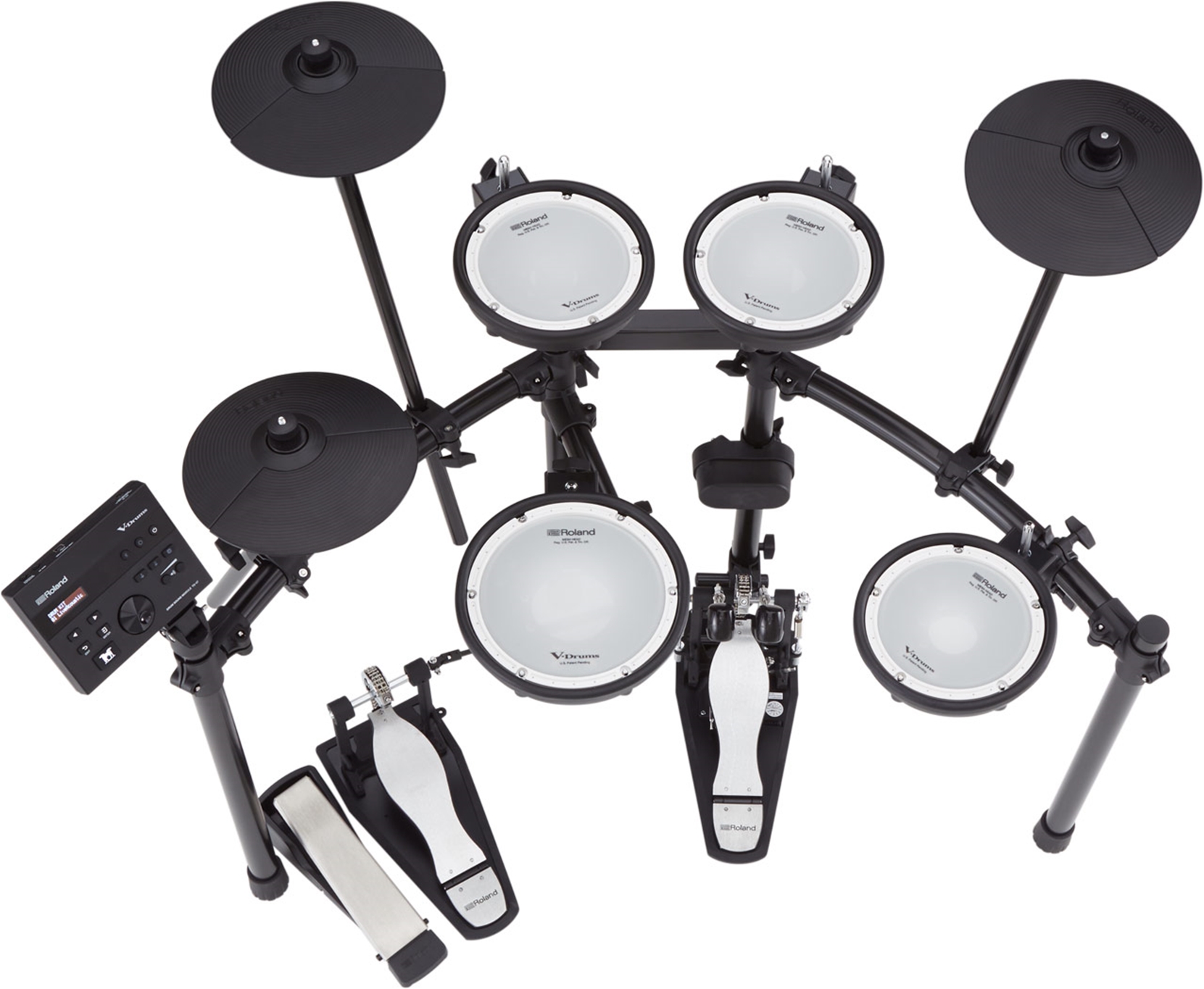

The Most Compact and Affordable Kit in the TD-07 Series
Compact and keenly priced—but with the professional tone, feel, and features to improve your drumming fast—the TD-07DMK is the entry point to the V-Drums TD-07 series. While the pads are smaller than the kits higher up the range, you’ll appreciate the satisfying feel from the PDX-8 snare and three PDX-6A toms, all featuring Roland’s ultra-quiet, double-ply mesh heads. The compact CY-5 crash and ride cymbals let you play with expression where space is tight, while a stand-mounted kick pad helps create the TD-07 range’s smallest footprint to make the perfect home kit.
Despite the compact size, you can still think big thanks to creative features that stretch beyond any acoustic kit. Call up authentic drum kits covering a range of styles and genres, and use deep tone editing tools to customize sounds just how you like. There’s also an onboard Coach mode to help you learn, Bluetooth® connectivity so you can play along with music streamed from your phone, tablet or computer, and USB to connect with computer-based recording software.
SPECIFICATIONSKit configuration (*1)Kick: KD-2
Snare: PDX-8
Hi-hat: CY-5
Hi-hat control pedal: Half-open stroke detectable
Tom: PDX-6A x 3 *2
Crash: CY-5
Ride: CY-5
Drum stand: Four-post type rack standDrum kits50 (Preset: over 20)Instruments143Effect TypesPad Equalizer: each pad
Overhead Mic Simulator
Room
Multi-Effects: 1 system, 30 typesCoach functions (5 modes)Time check (easy)
Time check (hard)
Quiet count
Auto up/down
Change-upMetronomeTempo (20--260)
Rhythm type (5 types)
Sounds (15 types)BluetoothSupported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)

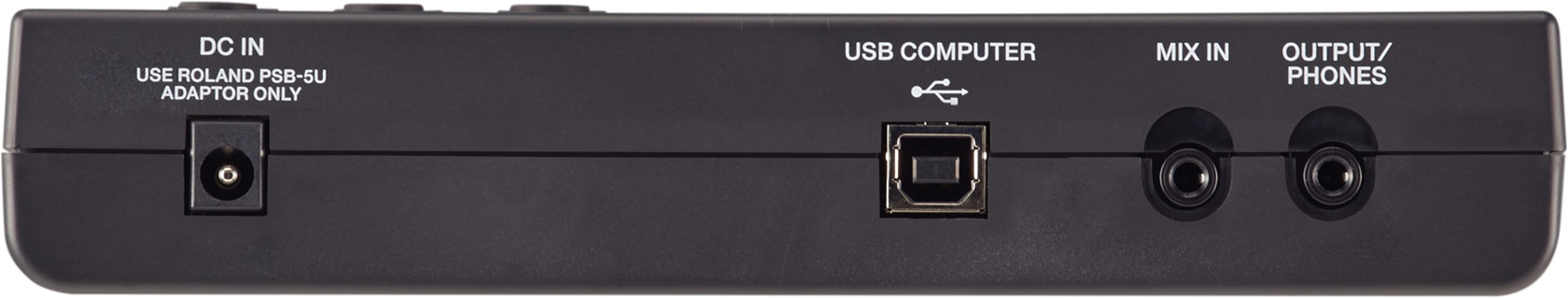

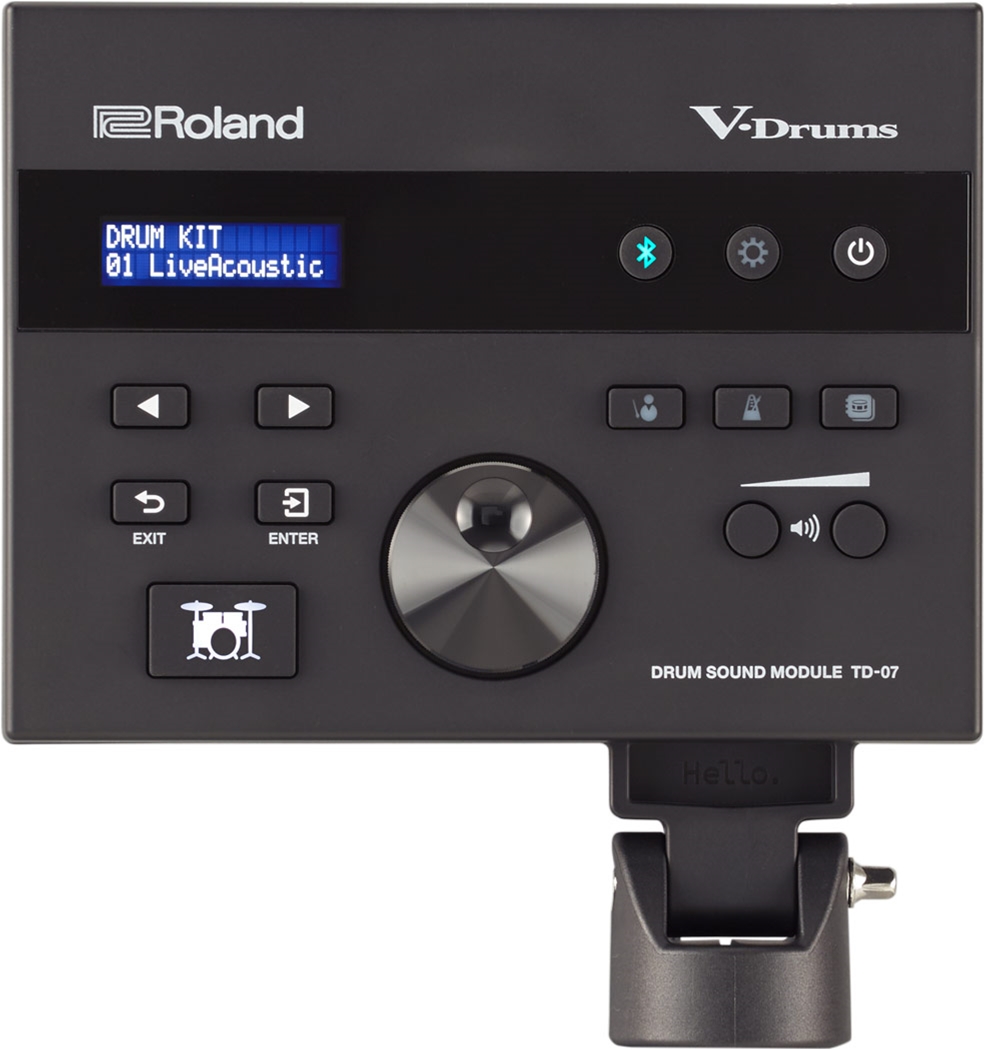

Codec: SBC (Support to the content protection of the SCMS-T method)Display16 characters x 2 lines LCD (with backlight)ConnectorsOUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)USB COMPUTERSpeed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *3USB AudioSampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 channels
Playback: 2 channelsPower supplyAC adaptor (DC 12 V)Current draw250 mAAccessoriesSetup Guide
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Special connection cableOptions (sold separately)Additional crash cymbal (Crash2): CY-5, MDY-Standard *4
Personal drum monitor: PM series
V-Drums accessory package: DAP-3X
V-Drums mat: TDM series
Noise eater: NE seriesSIZE & WEIGHTDimensions1,200 (W) x 1,100 (D) x 1,200 (H) mm
47-1/4 (W) x 43-5/16 (D) x 47-1/4 (H) inches
(including sound module, kick pad, kick pedal and drum throne)Weight18.0 kg / 39 lbs 11 oz
