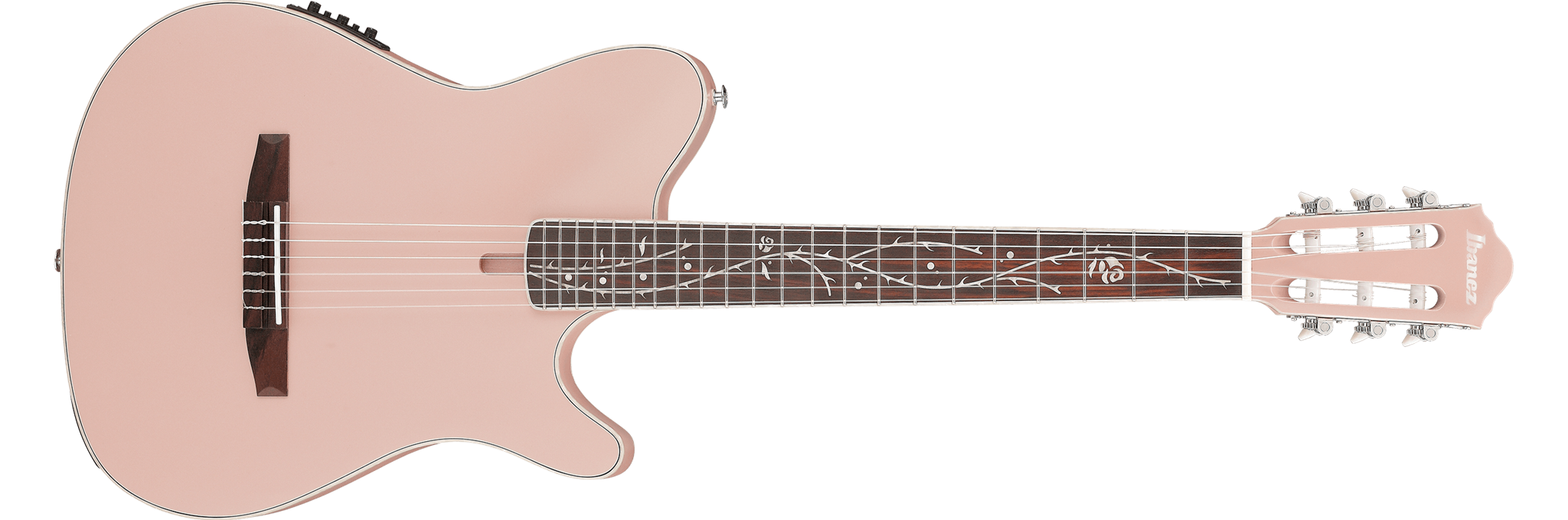

IBANEZ TOD10N Tim Henson Signature Nylon Acoustic-electric Guitar - Pearl Pink Flat

SPECS

• body shape
  FRH body
• bracing
  Fan Bracing for FRH
• top
  Solid Sitka Spruce top
• back & sides
  Sapele back & Sapele sides
• neck
  C shapeNyatohSet-in neck
• fretboard
  Rosewood fretboard
• bridge
  Rosewood bridge
• body binding
  Pearloid binding
• inlay
  Tree of Death inlay
• tuning machine
  Gold Classical tuners(TKF) / Chrome Classical tuners(SMF and PAF)
• nut material
  Bone
• number of frets
  22
• saddle material
  Bone
• strings
  D'Addario® XTC45
• string gauge
  .028/.032/.040/.028W/.035W/.044W
• string space
  11.6mm
• factory tuning
  1E,2B,3G,4D,5A,6E
• pickup
  Fishman® S-Core
• preamp
  Ibanez AEQ210TF preamp w/Onboard tuner
• output jack
  1/4" output
• battery
  9V x1

NECK DIMENSIONS

• Scale :
  648mm/25.5"
• a : Width
  46mm at NUT
• b : Width
  58mm at 14F
• c : Thickness
  21mm at 1F
• d : Thickness
  22mm at 7F
• Radius :
  400mmR

DESCRIPTION(Expand)

BODY DIMENSIONS

• a : Length
  17 5/16"
• b : Width
  14 3/16"
• c : Max Depth
  1 15/16"
